HP nx6325

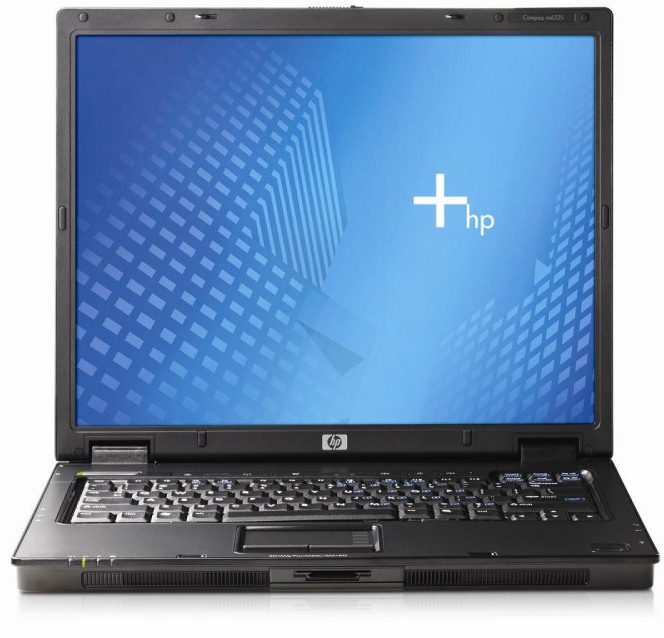

HP Compaq nx6325 (EY343EA)

HP nx6325

What do we get with HP Compaq nx6325?

CPU: Mobile AMD Sempron 3500+, L1: 128KB, L2: 512KB
RAM: 512 MB @ 667 MHz
HDD: FUJITSU MHV2060B 60GB
DVD: HL-DT-ST DVDRAM GMA-4082N
VGA: ATI Technologies Inc RS482 [Radeon Xpress 200M]
LAN: Broadcom Corporation NetXtreme BCM5788 Gigabit Ethernet
WLAN: Broadcom Corporation BCM4310 UART
Audio: ATI Technologies Inc SB450 HDA Audio
USB: ATI Technologies Inc IXP SB400 USB
Firewire: Texas Instruments PCIxx12 OHCI Compliant IEEE 1394 Host Controller
Memory Card Reader: Texas Instruments 5-in-1 Multimedia Card Reader
Display: 15" with 1024x768 resolution
BATTERY: 6 Cell Li-ion HP Battery, should hold for about 3h.

Output from 'lspci':

00:00.0 Host bridge: ATI Technologies Inc RS480 Host Bridge (rev 10)
00:01.0 PCI bridge: ATI Technologies Inc RS480 PCI Bridge
00:04.0 PCI bridge: ATI Technologies Inc RS480 PCI Bridge
00:05.0 PCI bridge: ATI Technologies Inc RS480 PCI Bridge
00:06.0 PCI bridge: ATI Technologies Inc RS480 PCI Bridge
00:12.0 IDE interface: ATI Technologies Inc IXP SB400 Serial ATA Controller (rev 80)
00:13.0 USB Controller: ATI Technologies Inc IXP SB400 USB Host Controller (rev 80)
00:13.1 USB Controller: ATI Technologies Inc IXP SB400 USB Host Controller (rev 80)
00:13.2 USB Controller: ATI Technologies Inc IXP SB400 USB2 Host Controller (rev 80)
00:14.0 SMBus: ATI Technologies Inc IXP SB400 SMBus Controller (rev 81)
00:14.1 IDE interface: ATI Technologies Inc IXP SB400 IDE Controller (rev 80)
00:14.2 Audio device: ATI Technologies Inc IXP SB4x0 High Definition Audio Controller (rev 01)
00:14.3 ISA bridge: ATI Technologies Inc IXP SB400 PCI-ISA Bridge (rev 80)
00:14.4 PCI bridge: ATI Technologies Inc IXP SB400 PCI-PCI Bridge (rev 80)
00:18.0 Host bridge: Advanced Micro Devices [AMD] K8 [Athlon64/Opteron] HyperTransport Technology Configuration
00:18.1 Host bridge: Advanced Micro Devices [AMD] K8 [Athlon64/Opteron] Address Map
00:18.2 Host bridge: Advanced Micro Devices [AMD] K8 [Athlon64/Opteron] DRAM Controller
00:18.3 Host bridge: Advanced Micro Devices [AMD] K8 [Athlon64/Opteron] Miscellaneous Control
01:05.0 VGA compatible controller: ATI Technologies Inc RS485 [Radeon Xpress 1100 IGP]
02:01.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5788 Gigabit Ethernet (rev 03)
02:04.0 CardBus bridge: Texas Instruments PCIxx12 Cardbus Controller
02:04.1 FireWire (IEEE 1394): Texas Instruments PCIxx12 OHCI Compliant IEEE 1394 Host Controller
02:04.2 Mass storage controller: Texas Instruments 5-in-1 Multimedia Card Reader (SD/MMC/MS/MS PRO/xD)
02:04.3 SD Host controller: Texas Instruments PCIxx12 SDA Standard Compliant SD Host Controller
30:00.0 Network controller: Broadcom Corporation BCM4312 802.11a/b/g (rev 01)

HP Service manual

HP Service manual which shows how to change RAM, HDD, what are the parts numbers. It also contains info about options in BIOS ! You can download it from here it's in the "Technical guides and product specifications" part.

Year 2013

It works and it is still usable. Lately I had to work with it for few days. Ubuntu 12.4 LTS 64Bit installed on a SSD drive, this quite old hardware and I'm satisfied. Sure my AMD desktop with 6 cores is way better and faster but even today I can see this as a considerable backup solution.
